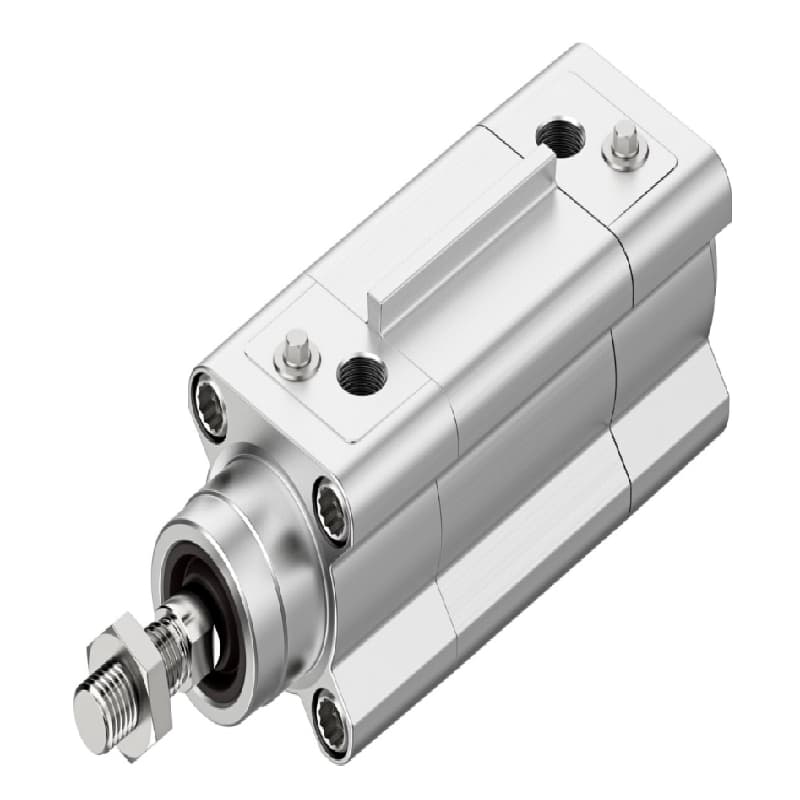

FESTO DSBF-C-32-80-PPVA-N3-R 1773755 DSBF series standard cylinders ，ISO cylinder

Name: FESTO DSBF-C-32-80-PPVA-N3-R 1773755 DSBF series standard cylinders ，ISO cylinder
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original FESTO Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	DSBF-C-32-80-PPVA-N3-R 1773755
Product Type	DSBF series standard cylinders
Product Origin	Germany
Shipping Port	Xiamen
Weight	1.534 lbs

Brand :
FESTO

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The DSBF-C-32-80-PPVA-N3-R is a standard cylinder in the FESTO DSBF series, conforming to the ISO 15552 international standard.

This double-acting cylinder has a 32mm bore and 80mm stroke, and features adjustable pressure cushioning (PPV) at both ends. It boasts a high corrosion resistance rating (CRC 3), enabling it to withstand highly corrosive environments. It is widely used in general automated production lines such as automotive manufacturing, packaging

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Compliant with ISO 15552 standard: International standard dimensions, highly interchangeable, easy to replace and maintain.
✓ Adjustable air cushioning at both ends: PPV air cushioning design absorbs terminal impact energy, extending cylinder life.
✓ High corrosion resistance: CRC 3 corrosion resistance rating, able to withstand the effects of highly corrosive environments.
✓ Position detection function: Equipped with a sensor mounting rail, allowing for the installation of proximity switches to detect piston position.

Technical Specifications

Brand	FESTO
Model / Part Number	DSBF-C-32-80-PPVA-N3-R
Order No.	1773755
Valve Function	Double-acting
Cylinder Bore	32 mm
Stroke	80 mm
Buffering Method	PPV (Adjustable Pneumatic Buffer)
Air Interface	G1/8
Piston Rod Thread	M10x1.25
Operating Pressure	0.06 ~ 1.2 MPa
Operating Temperature	-20 ~ 80℃

Frequently Asked Questions

Q: What are the main applications of the DSBF-C-32-80-PPVA-N3-R?

A: It is mainly used in standard pneumatic drive applications in general automation equipment. For example, pushing and clamping in packaging machinery; positioning and lifting in automotive assembly lines; conveying and stopping in material handling systems. Compliance with ISO 15552 standards ensures excellent interchangeability, allowing it to replace other brands of cylinders of the same standard.

Q: How is the corrosion resistance of this cylinder?

A: It has strong corrosion resistance. This model has a corrosion resistance rating of CRC 3, belonging to the "strong corrosion impact" level, and can withstand harsh environmental conditions. It is suitable for food processing, chemical plants, ships, and other applications with a certain risk of corrosion.

Q: What should I pay attention to when purchasing and installing it?

A: Pay attention to three points:

Buffer Adjustment: Adjustable pneumatic buffer (PPV) at both ends, the buffering effect can be adjusted according to load and speed.

Position Detection: The cylinder has a sensor mounting rail; the proximity switch needs to be ordered separately.

Installation accessories: Various installation methods are available (such as feet, flanges, trunnions, etc.), and accessories must be selected according to the actual working conditions.

Why Partner With Us?

2016

Established in

300+

Countries Sold

200+

Employees

4000+

Companies Served

100% Original

Genuine spare parts through rigorous supply chain control.

Quick Shipping

Expedited delivery through our global logistics network.

24/7 Support

Uninterrupted technical assistance for system installation.

Large Stock

Immediate availability from our massive control systems inventory.
