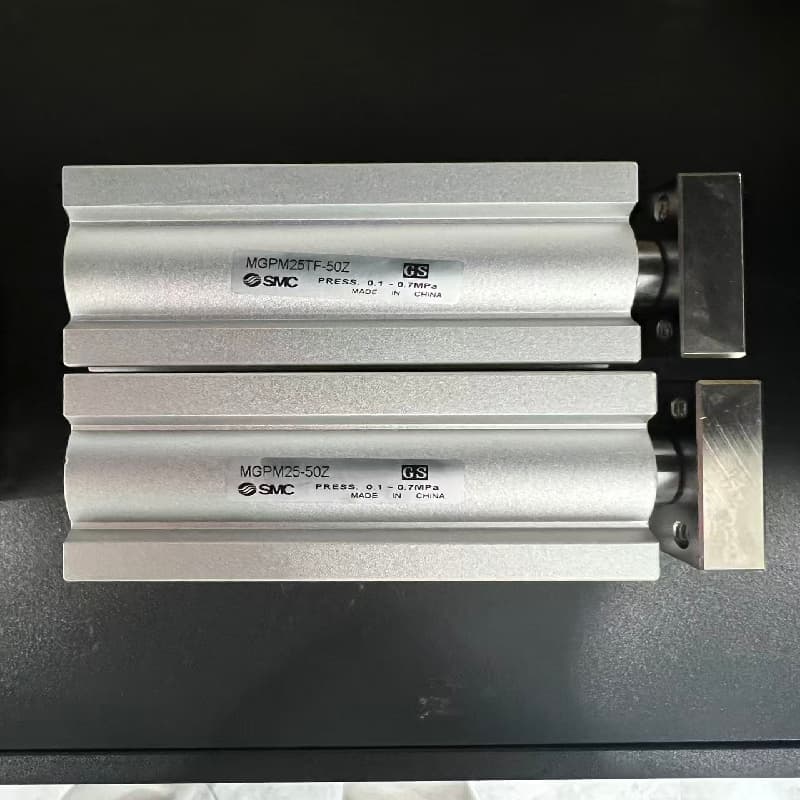

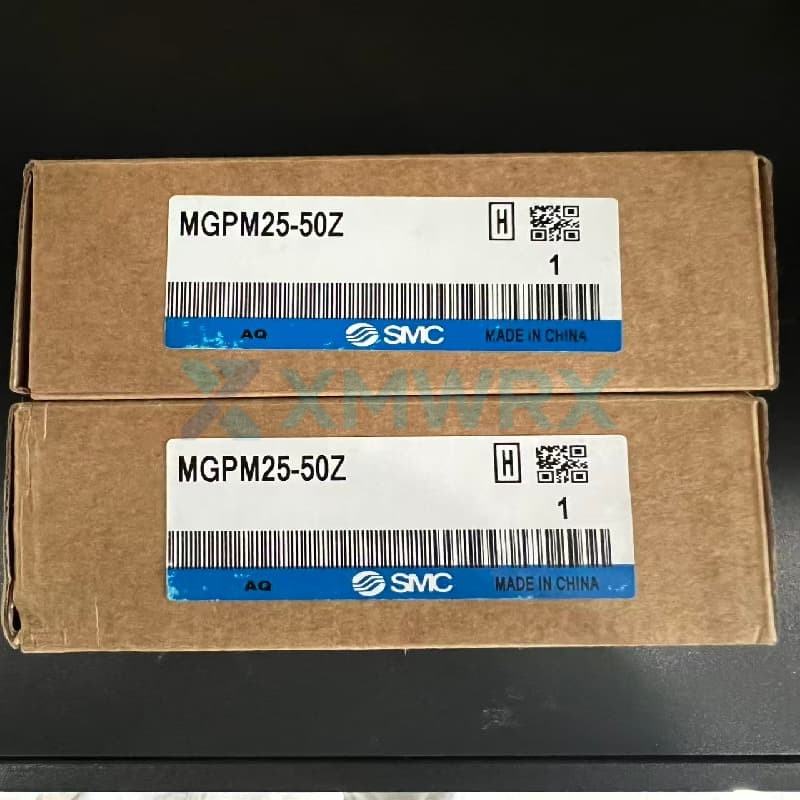

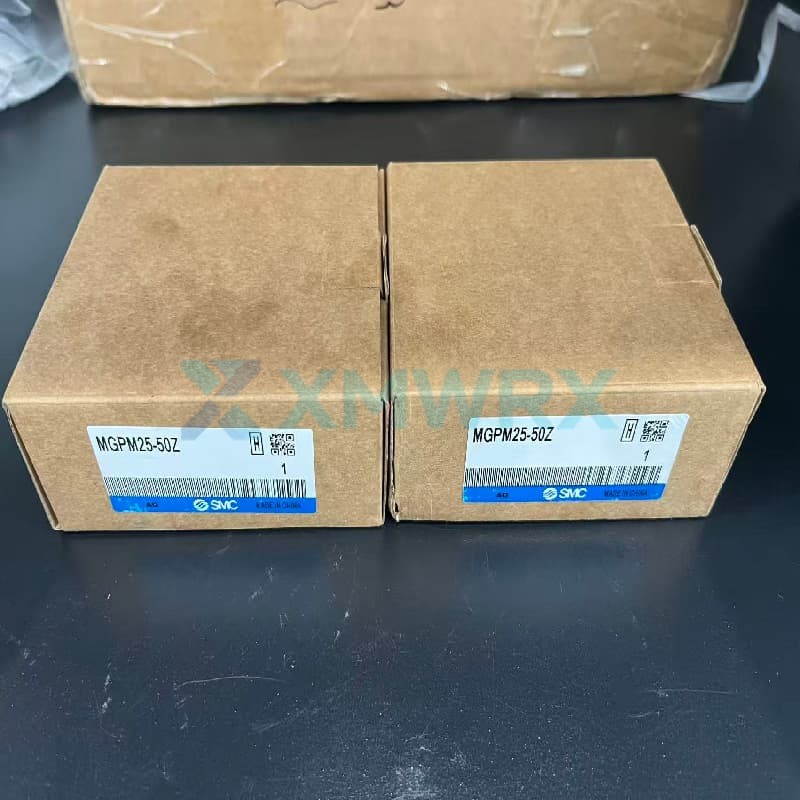

SMC MGPM25-50Z MGP-Z Series Thin-Type Cylinder with Guide Rod

Name: SMC MGPM25-50Z MGP-Z Series Thin-Type Cylinder with Guide Rod
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original SMC Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	MGPM25-50Z
Product Type	Thin-Type Cylinder with Guide Rod
Product Origin	China
Shipping Port	Xiamen
Weight	2.80 lbs

Brand :
SMC

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

The MGPM25-50Z is a thin-profile cylinder with a guide rod from the SMC MGP-Z series. It has a 25mm bore and a 50mm stroke.

By shortening the guide rod and changing the end plate thickness, it achieves approximately 24% weight reduction while maintaining high lateral load resistance, helping to save installation space. This cylinder is a double-acting type, using sliding bearings, with rubber buffers at both ends, and an internal magnetic ring for installing a magnetic switch to detect the piston position. It is widely used in automated production lines in industries such as electronics, packaging, and pharmaceuticals, suitable for short-distance handling, lifting, and stopping operations requiring high guiding precision.

100% Original & AuthenticIn-Stock & Fast ShippingExpert Technical Support12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ High lateral load tolerance: Designed specifically for scenarios involving lateral loads such as handling and lifting, offering high guiding accuracy and smooth operation.
✓ Ultra-compact and lightweight: By shortening the guide rod, the weight is reduced by up to 24% compared to the original series, significantly saving installation space.
✓ Long stroke and high load capacity: Optimized guide rod design ensures excellent load capacity and torque resistance even at long strokes.
✓ Easy to install and use: Supports four fixing methods and two-directional piping, and the magnetic switch can be directly installed without a partition, making system integration flexible and convenient.

Technical Specifications

Brand	SMC
Model / Part Number	MGPM25-50Z
Cylinder bore	25 mm
Cylinder stroke	50 mm
Operating pressure	0.1 ~ 1.0 MPa
Operating temperature	-10 ~ 60℃
Piston speed	50 ~ 500 mm/s
Type of thread for the sprue	Rc (1/8 inch)

Frequently Asked Questions

Q: What equipment is it mainly used on?

A: Commonly used in lifting and stopping positions on electronic assembly, material handling, and packaging production lines.

Q: Can it withstand lateral forces?

A: Yes. The guide rod structure is specifically designed for high lateral loads, ensuring smooth operation and high precision.

Q: Does it have a magnetic switch?

A: The main body has a built-in magnetic ring, but the switch needs to be purchased separately. It can be directly mounted on the cylinder body.
