SMC MGPM32TF-150AZ MGP (New MGP-Z Series) Thin-walled cylinder with guide rod/sliding bearings/Double-acting cylinder

Name: SMC MGPM32TF-150AZ MGP (New MGP-Z Series) Thin-walled cylinder with guide rod/sliding bearings/Double-acting cylinder
Availability: InStock

✔ IN STOCK ✔ New Original

Delivery time: Shipped in 3 days after payment
Condition: Brand New & Original SMC Factory Sealed
Warranty: 12 Months Standard Warranty
Quality Guarantee: 30-Day Return and Exchange Policy

Part Number	MGPM32TF-150AZ
Product Type	High-precision double-acting cylinder with guide rod
Product Origin	China
Shipping Port	Xiamen
Weight	8.6 lbs

Brand :
SMC

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

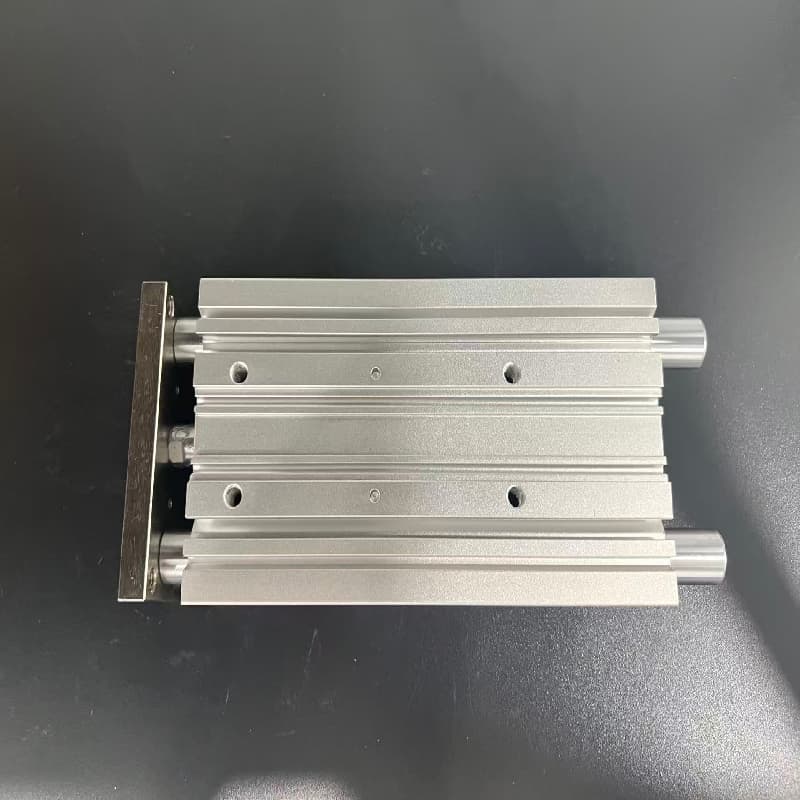

The MGPM32TF-150AZ is an MGP series cylinder with a guide rod manufactured by SMC.

Its main specifications include a 32mm bore and 150mm stroke. It features a double-acting, sliding bearing design and includes a pneumatic damping function. By integrating the cylinder body and guide rod, this cylinder achieves a compact and lightweight structure, reducing weight by 17% compared to the previous series, while effectively withstanding large lateral loads. Therefore, it is commonly used in automated industrial applications requiring precise guidance, such as material handling, pushing, and lifting.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty

Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

✓ Precise Guidance: Through its integrated guide rod and sliding bearing design, it can withstand large lateral loads and ensures the piston rod does not rotate during movement, thus achieving high-precision linear reciprocating motion.
✓ Power Output: As a double-acting cylinder, it uses compressed air to drive the piston forward or backward, providing reliable linear power for push, pull, and lifting movements.
✓ Smooth Cushioning: Its equipped air cushioning mechanism absorbs kinetic energy at the end of the stroke, effectively reducing impact and noise, resulting in a smoother and gentler piston stop.
✓ Compact Installation: Its lightweight, short-pitch compact structure saves installation space and facilitates integration into various automated equipment and production lines.

Technical Specifications

Brand	SMC
Model / Part Number	MGPM32TF-150AZ
Cylinder bore	32 mm
Stroke	150 mm
Bearing type	Sliding bearing
Connection thread	G
Buffer type	Pneumatic buffer
Operating pressure	Maximum 1.0 MPa (10 bar)

Frequently Asked Questions

Q: What specific equipment is this cylinder suitable for?

A: It is ideal for automated material handling lines, such as moving workpieces from one conveyor belt to another, or as a lifting and positioning mechanism to precisely position workpieces at assembly stations.

Q: Can it be installed in narrow spaces?

A: Yes. It is a slim, guide-rod-equipped cylinder, more compact in length and height than traditional guiding mechanisms, designed to save space and suitable for installation in tight equipment gaps.

Q: Is the connector thread metric or imperial for this model?

A: TF in the model number indicates that it is equipped with a G thread (imperial pipe thread). When connecting the air hose, the corresponding imperial thread connector must be selected, not the metric M thread.
